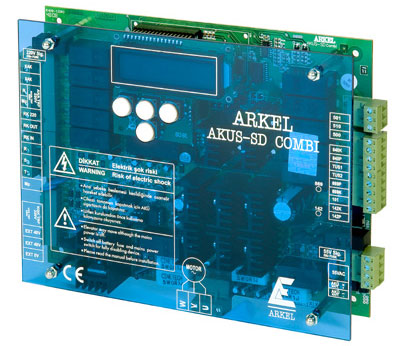

AKUS-SD COMBİ

Technicial Specifications

    GENERAL FEATURES Can be used with asynchronous (geared) and synchronous (gearless) lift drives. Provides greate travel comfort. Load-independent and sensitive stopping on the floors. High torque motor drive at all speed via space vector modulation. Up to 40% electrical usage savings. Elimination of startup problems with generators by the help of controlled motor current. Specifically designed for elevators. Special parameters for travelling comfort. 10 KHz IPM switching frequency for low noise motor drive. Energy consumption through an internal DC reactor. 4 low noise fans for efficient cooling. All isolated control inputs and outputs. Over-load, high voltage, low voltage, output short circuit, power lost, line phase control, over heat, ground fault, over-torque and other necessary protection functions. EMC tested and verified. 5.5 kW, 7.5 kW, 11 kW, 15 kW and 22 kW power rating models.
