Lift Control Panels

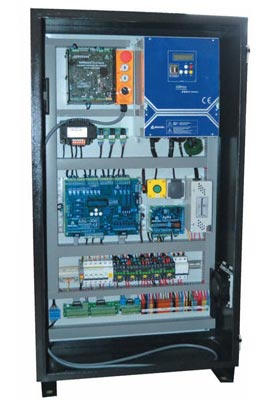

ARL 300 ASANSÖR KUMANDA PANOSU

ARL 300

Number of Stop : 24 Stops
Control Type : All kinds of traffic systems
Drive Type : Dual speed
Hydraulic
Variable speed
Geared machine
Gearless machine(with machine room and MRL)
Group Control : Yes
Serial Com. : Trough the cabin
Additional
Specifications
: Internal door bridging circuit
Internal automatic door control
Internal phased-arry engine protection
Gray/Binary code output programmable for
indicators


.

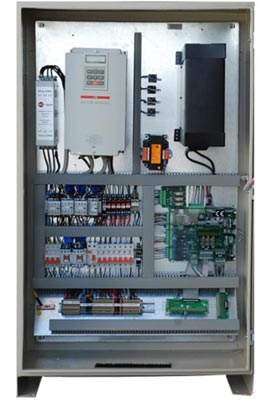

ACT ÇİFT HIZLI KUMANDA Panosu

ACT

Code KT AT CDT KT AT CDT
C5101 8 4 3 8 8 5
C5102 16 8 6 16 16 9
C5104 32 16 11 16 16 16
C5106 32 32 16 32 32 25
32 32 22 32 32 32
C5110 32 32 27 - - -
C5112 32 32 32 - - -
Full Serial Communication Tables
Product Code Double Button Collection
C5228 28
C5232 32

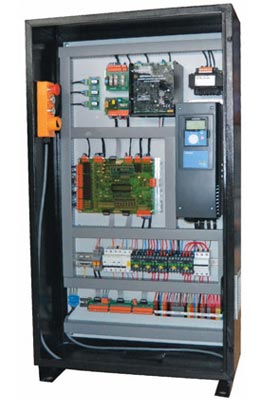

ML65X ASANSÖR KUMANDA PANOSU

ML65X

Number of Stop : 24 Stop
Control Type : All kinds of traffic systems
Drive Type : Dual speed
Hydraulic
Variable speed
Geared machine
Gearless machine(with machine room and MRL)
Group Control : Yes
Serial Com. : Trough the cabin
Additional
Specifications
: Internal automatic door control
Internal phased-arry engine protection
Gray/Binary code output programmable for indicators
